Product Description:

Jiangsu Shuangda Pump Industry Co., Ltd. has many years of mature experience in pump R & D, production and application, the company developed the Z series slurry pump as a single-stage single suction overhung horizontal centrifugal slurry pump. Including ZH, ZHH, ZM, ZL a variety of types of slurry pumps, with reasonable structure, reliable operation, long life and other advantages.

Feature:

1. Utilizing modern CAD design methods, the product offers excellent hydraulic performance, high efficiency, and low wear rate.
2. The wide flow passage ensures good anti-clogging performance and superior cavitation resistance.
3. The pump features an axial inlet and radial outlet, with the outlet direction rotatable in eight different angles for installation.
4. A dual-pump casing design is adopted, with the split casing for pressure-bearing and the lining for wear resistance.
5. Interchangeable metal and rubber linings are available, and the impeller is also available in both metal and rubber materials.
6. The bearing assembly employs a short overhang and large shaft diameter design, reducing deviation and vibration to a low level.
7. Multiple sealing options are available: packing seal, secondary impeller power seal, mechanical seal, and various special combination seals.
8. The pump can be used in multi-stage series within the allowable pressure range.

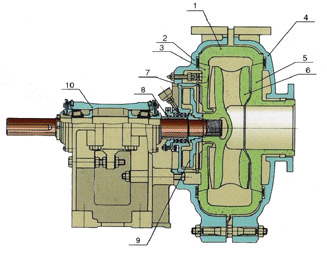

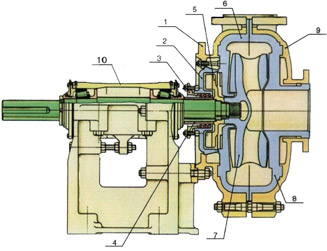

Product Structure Description









Applications：

Type ZH slurry pumps are designed for handling abrasive and corrosive high density slurries in the metallurgical, mining, coal, power, channel dredging, building material and municipal projects.
